The patient in today's case is a 70 something male who presented with a three week history of asthenia and intermittent palpitations. There was no chest pain, but he did describe shortness of breath on exertion and had a markedly reduced physical capacity. There was no syncope. Physical exam was unremarkable except radial pulse deficit. Chest X-ray normal. The patient had a coronary angiogram done 5 years prior which was completely normal. The patient was admitted for telemetry monitoring.

Below is a rhythm strip. How would you interpret the below tracing?

ECG #1

Interpretation: Above is an ECG comprised of five rhythm strips comprised of 5 monitoring leads. The tracing begins with a narrow QRS complex preceded by an upright P wave in lead II. (Sinus rhythm — I'd clarify what is sinus rhythm? I KNOW this is obvious — but it just looks fragmented as written ...) The PR interval is normal. Beat # 2 and 4 are ventricular premature complexes HOW do you know these are PVCs and not aberrantly conducted supraventricular beats?. Beat #2 shows AV dissociation with sinus P wave visible in it's ST segment This is not really "AV dissociation" — because this P wave in the T wave of beat #2 DOES conduct beat #3 .... Beat # 3 is a sinus beat with probable incomplete RBBB Why?. Beat #4 has a VA conducted What is a "VA conducted P wave"? (Again — I know this seems obvious — but it is not clearly stated P wave buried in the ST segment. Beat # 5 is another sinus beat followed by two PVCs. There is clear AV dissociation for beat #6. I do not see where (why) this is AV dissociation For beat # 7 (unlike beat #4) there is no retrograde atrial capture. Beats # 9-15 show a short run of ventricular tachycardia with retrograde 1:1 VA capture.

The above paragraph makes for a great example of the points I was suggesting in my initial comments above.

• When teaching arrhythmia interpretation — I emphasize that an amazingly simple thing to do that is INVALUABLE in facilitating interpretation (and in explaining what you are doing to others) — is simply to label all P waves in the tracing! I would do this here (using fairly small arrows that are not bigger than 1 large box in size). I generally use RED for obvious sinus P waves — and then I change colors depending on the point I am trying to illustrate. This makes it EASY to describe something by a colored arrow in seconds (ie, Note Willy's use of colored arrows in his cath film illustrations).
• The above paragraph is hard to read. Using bullets for each new descriptive point would go a LONG way toward simplifying.

The patient, for the majority of the time while on telemetry had the rhythm shown in the below tracing. What might be the hemodynamic consequences following this rhythm? Do you notice anything peculiar with this rhythm strip?   As a reader — I would not know what it is you are asking me to identify as "peculiar" (so I'd just clarify a bit more what you are asking).

ECG #2

Answer: The above ECG shows sinus rhythm with PVC in bigeminy. The PVCs are timed very early in diastole, and thus ventricular filling is insufficient. (very low preload). During echocardiography the aortic valve did not open following PVC, so they clearly were too premature to even give a pulse. NICE clinical point about correlation with Echo findings! — :) Thus the patient was functionally bradycardic with an effective heart rate just below 30 beats per minute. This explains the asthenia. Do we have any idea for how long during the day there is bigeminy with an overall heart rate this low?

Associated with the PVCs are retrograde P waves. Arrows could instantly point out what you are calling retrograde P waves — :)  However, there is something strange going on. Have a look at the RP' interval (Time from start of QRS to the retrograde P wave). The RP' interval is variable. Here arrows are NEEDED to point out what you are calling variable RP' intervals What might explain this finding?

Retrograde AV block with either constant RP' intervals or with Wenckebach conduction is a well known electrophysiological phenomenon. If this was VA wenckebach block, one would expect progressively increasing RP' interval until a retrograde impulse was not conducted. This does not happen. We do not see this. The RP’ interval lengthens, then shortens. This does not fit with any type of conventional AV block. does not fit with the usual forms of retrograde conduction. Instead — tThe variability in the RP' interval must might be the result of be caused by retrograde conduction over dual AV pathways, (one with «fast» and one with «slow» conduction properties). This would could explain variability in the RP' interval. the RP variability.

This case has yet another interesting ECG finding electrocardiographic curiosity. Can you figure it out? Do you see what it is?

ECG #3

In this tracing again there are PVCs in bigeminy with variable RP' interval.  Given how much artifact the top 2 leads have — would be best to add colored arrows showing retrograde P waves ... Beat #9 is marked with a red question mark. This beat has a different morphology than the other wide complexes. What might account  for the timing of this QRS complex and why does is appear different morphologically from the PVCs?  NOTE — I think it best when asking questions to leave a bit MORE space before you give the answer! (Otherwise readers might unknowingly see the answer before they have a chance to formulate their response ... )

Answer: Beat number #9 is very likely an echo beat. (For detailed explanation see in depth analysis by dr Grauer below). Look at the preceding beat (#8, the PVC). That beat has retrograde capture of the atria with a long RP' interval. The electrical impulse after having traversed the AV node and activated the atria, then «echoes» back down the AV node  (antegrade conduction) and captures the ventricles again (Beat # 9), now with LBBB morphology.  now with aberrant conduction. The LBBB is due to the left bundle still being refractory. (Rate dependent LBBB)  The only lateral lead you show on the rhythm strip of ECG #3 is lead V5 — but since the QRS is not all positive in V5 — we do not know if this is truly "LBBB aberration". I would not call it "rate-related BBB" — because we only see 1 beat, which is an Echo beat — and not a speeding up of the rhythm that favors rate-related aberrancy. True, the reason for the wide QRS may be similar to "rate-related aberrancy" — but I would simply say something like the different QRS morphology of beat #9 with its short coupling interval results in aberrant conduction.

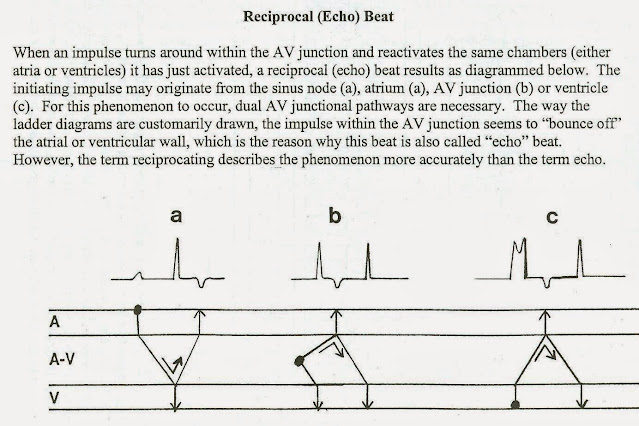

As I mentioned above — important to add the specific source from where you are copying the Reciprocal (Echo) Beat figure ... And if you do use this figure — would be best to indicate that what happens is similar to "c" in this Figure, with the exception that the echo beat is aberrantly conducted.

Discussion: This patient was experiencing palpitations due to short runs av ventricular tachycardia. Asthenia was caused by pulseless ventricular premature complexes. Telemetry revealed dual AV pathway and echo beats. Stress test was performed, and the PVCs disappeared during exercise. Echocardiography revealed normal ventricular function and a structurally normal heart. An ICD/pacemaker was placed. The patient was started on betablocker therapy and discharged home. Follow up is unavailable.

 Once again — given how much is described — I think bullets would help in your discussion. I will continue to be "picky" (which goes BEYOND-the-CORE of our readers — but which are important clinical points). So — NO NEED to necessarily include all that I state below — but I think good for you to be aware of.

• HOW do you know what is causing the palpitations? It could be the VT — but studies show that almost ANY RHYTHM ABNORMALITY may be the cause of palpitations (a point I would always include during my lectures on palpitations). Bradycardia may cause palpitations and so can single PVCs.
• Is Asthenia "caused" by pulseless PVCs? — or is it the persistent BRADYCARDIA that is more probably responsible for this patient's profound fatigue?
• I do think use of dual AV nodal pathways IS a possibility — but I don't think this is "revealed" by telemetry. (instead — the above rhythms strips suggest that dual AV nodal pathways may be operative).
• Your discussion sounds like Echo beats were common. Were they? Regardless if common or not — I think of Echo beats as more of an interesting phenomenon to make readers aware of — but not really something of clinical significance (as is implied here).
• Blood tests? (ie, Hct, electrolytes?)
• What did a 24-hour Holter monitor show ????? This patient is 70. Isn't SSS (Sick Sinus Syndrome) likely? Why are there PVCs and runs of VT? We may never find out for certain — but given a structurally normal heart — could it be that SSS with bradycardia is a fundamental problem, with inadequate oxygenation leading to ventricular ectopy?
• AGAIN — I ask lots of questions — but from what I read, I think lots of questions remain. That said — permanent pacing will probably cure this. The ß-blocker may or may not be needed — but no problem empirically using it since the pacer guarantees an adequate heart rate.
• YOU can "mold" your Discussion in ANY way you like — but I think would be good to make sure the story touches all bases. (And it is FINE to indicate that our data base on this patient is incomplete for answers to the questions I ask that are not known ... )
